10 kVA Diesel Generator – Yanmar Engine | Solarmate P10.1 (Single Phase)

10 kVA Diesel Generator – Yanmar Engine | Solarmate P10.1 (Single Phase)

ENQUIRE TO BUY OR RENT →

Single phase diesel generator powered by a reliable Yanmar engine, ideal for solar backup, battery recharge and off-grid power systems.

Product Overview

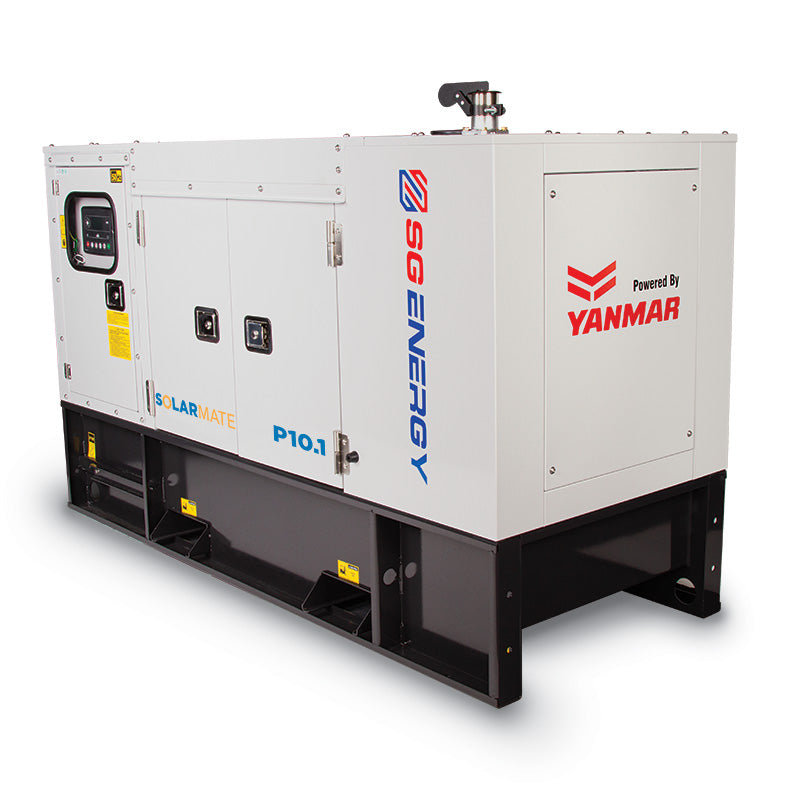

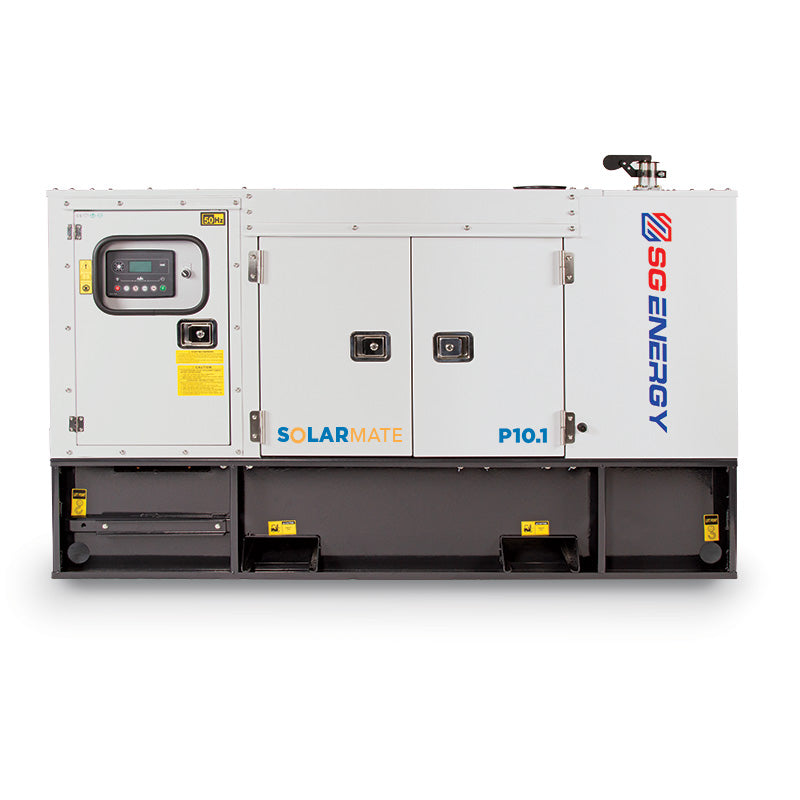

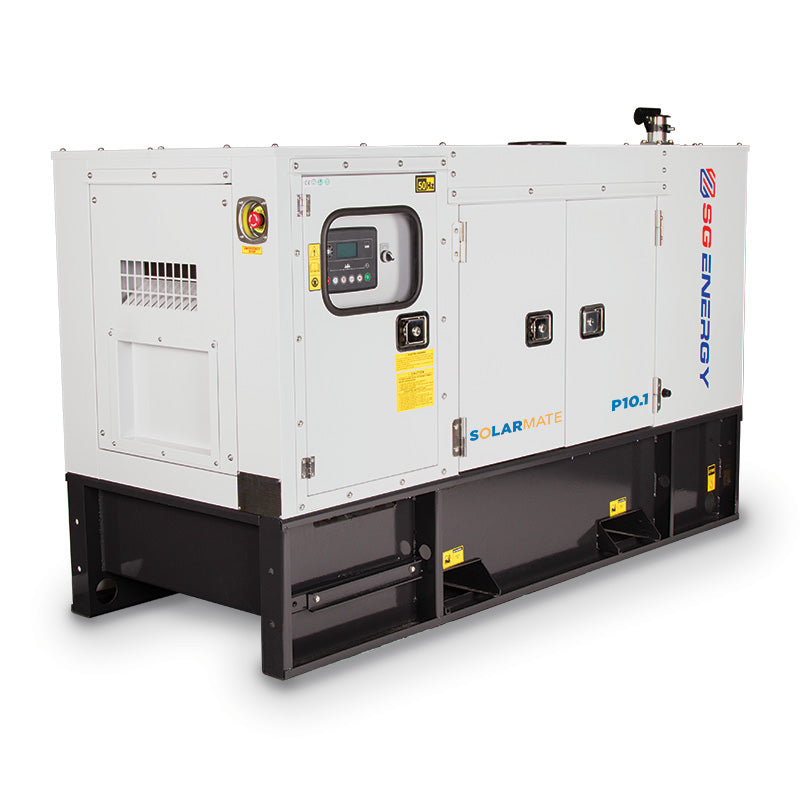

The Solarmate P10.1 is a compact, single-phase diesel generator powered by a dependable Yanmar engine, designed to integrate with solar and hybrid energy systems.

When solar production decreases or battery charge drops, this generator automatically starts to provide reliable backup power or assist in battery recharging — ensuring continuous energy availability. With quality components and intelligent control, the P10.1 is well-suited for homes, rural properties, and commercial backup setups.

Quick Product Highlights

  • Standby (ESP): 10.3 kVA
  • Prime (PRP): 9.0 kVA
  • Yanmar 3TNV82A-GGE diesel engine
  • Dingol 164C brushless alternator (AVR)
  • Deep Sea Electronics DSE4520 controller
  • Automatic start for solar / battery systems
  • 100 L fully bunded integrated diesel tank
  • ~3.2 L/hr fuel usage @ 100% load
  • Sound-attenuated canopy (75 dB @ 1 m)
  • Australia-wide delivery available

Specifications

Prime Power (PRP)

9 kVA

Standby Power (ESP)

10.3 kVA

Phase

Single Phase

Voltage

240 v

Frequency

50 Hz

Power Factor

0.8

Engine

YANMAR 3TNV82A-GGE

Alternator

Dingol 164C 11 kVA

Controller

Deep Sea Electronic DSE 4520

Fuel Tank

100L

Canopy

Galvanised Steel Canopy with Powder Coated Paint

Outlets

Configurable to client needs

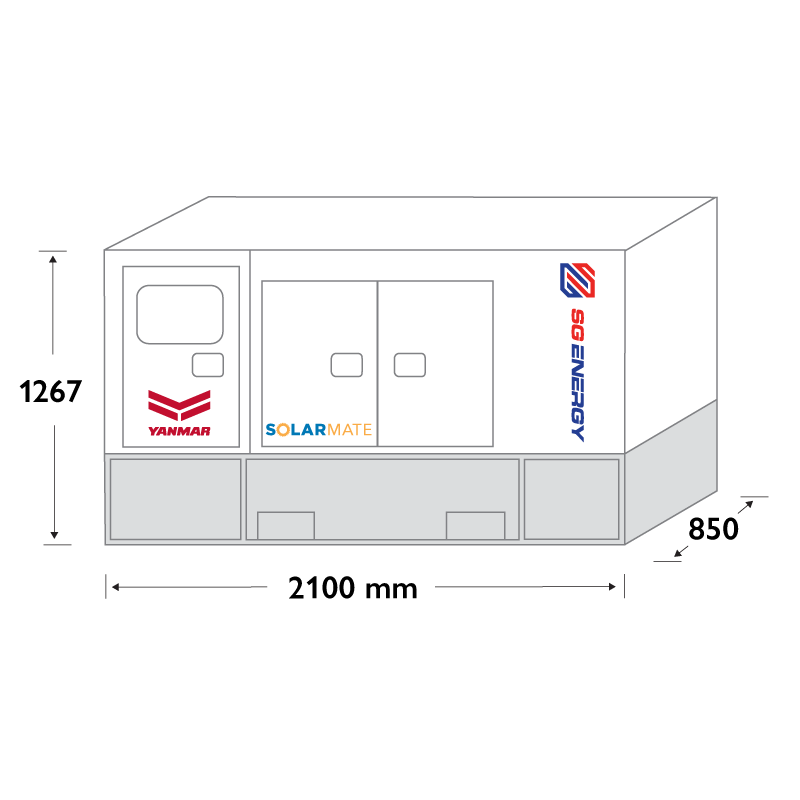

Dimensions (LxWxH)

L2100 x W850 x H1267 mm

Weight (excl. fuel)

815 kg

Engine & Alternator

Engine

  • Model: Yanmar 3TNV82A-GGE
  • Water-cooled, indirect injection diesel
  • Durable and fuel-efficient

Alternator

  • Model: Dingol 164C
  • Brushless synchronous alternator with AVR
  • Stable single-phase output

Control System & Electrical Protection

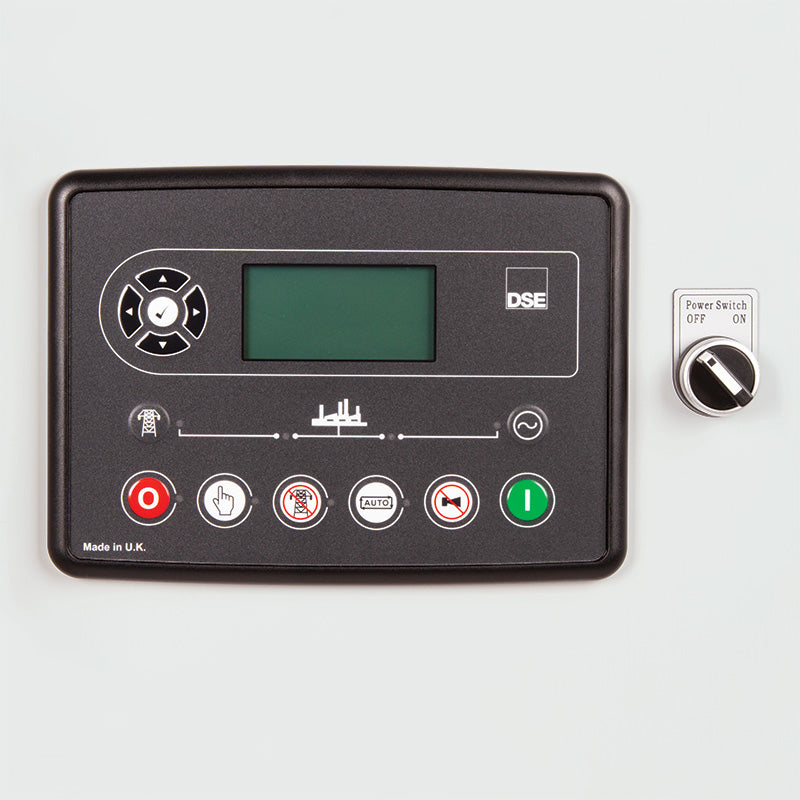

The Solarmate P10.1 uses a Deep Sea Electronics DSE4520 controller, providing automatic start in response to low solar or battery levels. The system supports load monitoring, safety shutdowns, and overload protection for secure operation.

Noise & Enclosure Design

Noise Level: 75 dB @ 1m

  • Sound-attenuated steel canopy for quieter operation
  • Galvanised casing with powder-coat finish
  • Lockable doors for easy maintenance
  • Stainless steel fixtures for corrosion resistance
  • Built for all-weather outdoor use

Ideal Applications

  • Home backup power
  • Rural properties and farms
  • Workshops and small businesses
  • Off-grid and standby systems
  • Construction site amenities
  • Light commercial facilities

Delivery, Warranty & Support

  • Australia-wide delivery available
  • Manufacturer-backed engine support
  • Optional installation & commissioning
  • Ongoing servicing and maintenance available

Question about this product?


Fill in the form below and we’ll get back to you shortly.

Upload a PDF file to display it here

Recommended Products

What engine powers the P10.1?

It’s powered by a Yanmar 3TNV82A-GGE diesel engine.

Is this suitable for solar backup?

Yes, automatic start makes it ideal for solar + battery backup systems.

Is this a single phase generator?

Yes, operating at 240 V single phase.

How much fuel does it use?

Approximately 3.2 L/hr at full load.

What features does the genset canopy offer for noise reduction and durability?

The sound-attenuated canopy will minimise noise output and complement your tranquil surroundings. The genset canopy is galvanised steel, powder coated, and fitted with high-quality stainless steel components; these units can withstand harsh environments and resist corrosion.
