What engine is in the P17.1?

It’s powered by a Yanmar 3TNV88A-GGE diesel engine.

Is this suitable for solar backup?

Yes — the automatic start feature makes it ideal for solar + battery backup applications.

How much fuel does it use?

Fuel use is approximately 4.7 L/hr at full load.

Do you deliver Australia-wide?

Yes. Delivery is offered throughout Australia, POA based on location.

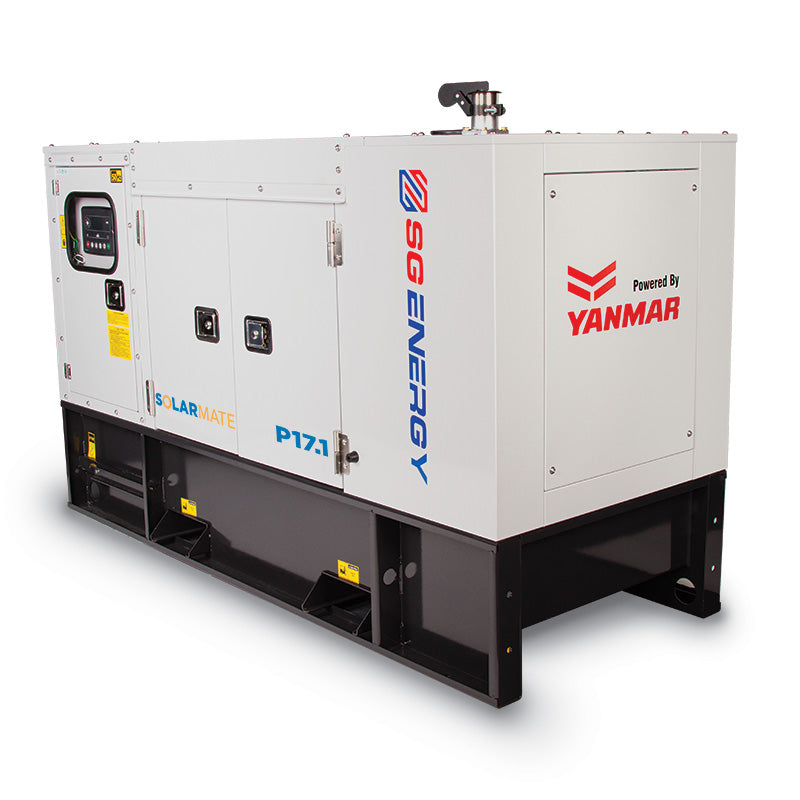

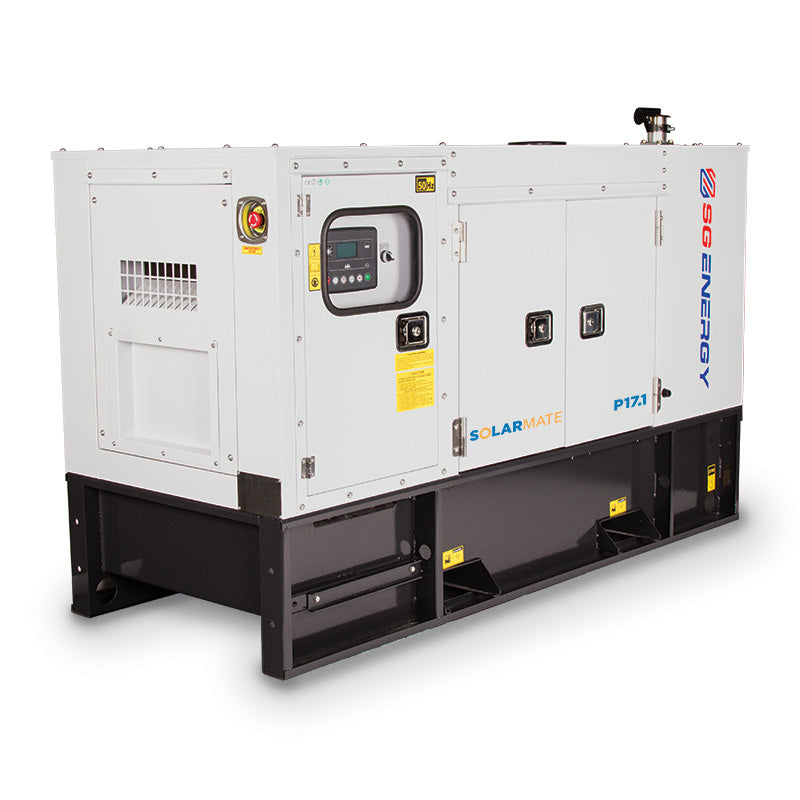

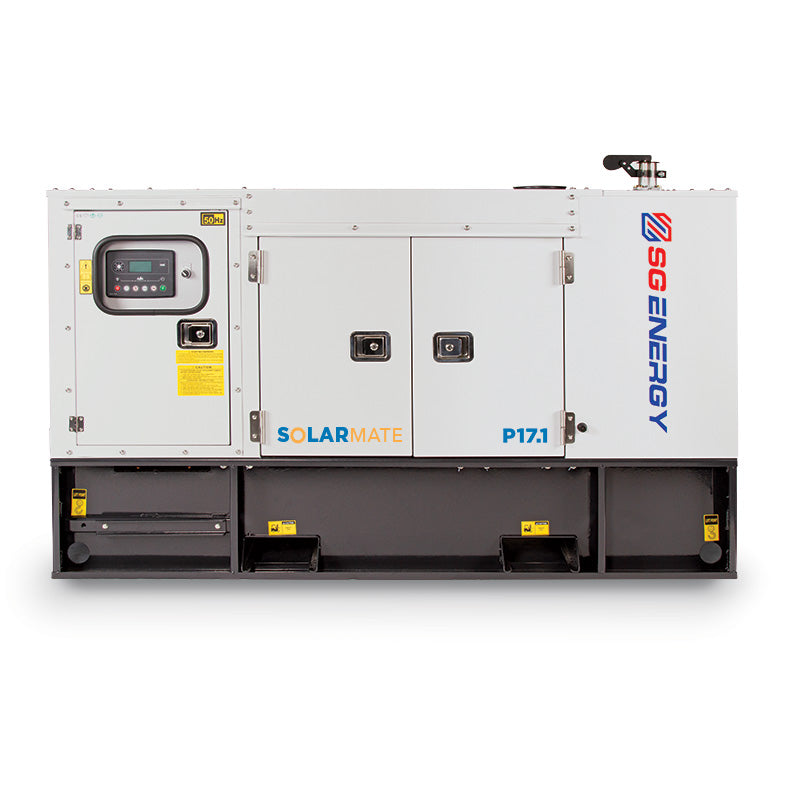

17 kVA Diesel Generator – Yanmar Engine | Solarmate P17.1 (Single Phase)

Name: 17 kVA Diesel Generator – Yanmar Engine | Solarmate P17.1 (Single Phase)
Brand: Southern Generators & Electrical
Availability: OutOfStock

ENQUIRE TO BUY OR RENT →

Product Overview

The Solarmate P17.1 is a robust single-phase diesel generator built around a dependable Yanmar water-cooled engine, providing reliable standby and prime power for solar and hybrid systems.

Designed to automatically engage when solar input drops or battery charge depletes, this generator delivers consistent energy for off-grid homes, rural properties, and light commercial backup applications.

Quick Product Highlights

Standby (ESP): 17.0 kVA
Prime (PRP): 15.4 kVA
Yanmar 3TNV88A-GGE diesel engine
Dingol 164C brushless alternator (AVR)
Deep Sea Electronics DSE4520 controller
Automatic start for solar/battery systems
100 L fully bunded integrated fuel tank
Approx. 4.7 L/hr fuel usage @ 100% load
Sound-attentuated canopy (approx. 75 dB @ 1 m)
Australia-wide delivery available

Specifications

Prime Power (PRP)	15kVA
Standby Power (ESP)	16.6kVA
Phase	Single Phase
Voltage	240 V
Frequency	50Hz
Power Factor	0.8
Engine	YANMAR 4TNV88-GGHWC
Alternator	Dingol 184E
Controller	Deep Sea Electronic DSE 6120
Fuel Tank	150L
Canopy	Galvanised Steel Canopy with Powder Coated Paint
Outlets	Configurable to client needs

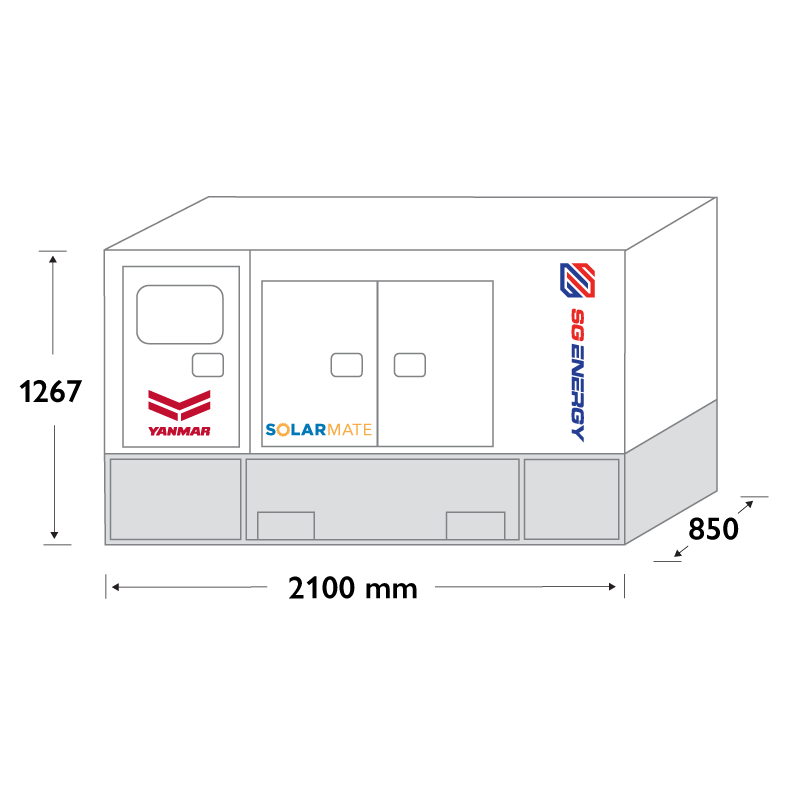

Dimensions (LxWxH)	L2100 x W850 x H1267 mm
Weight (excl. fuel)	800kg

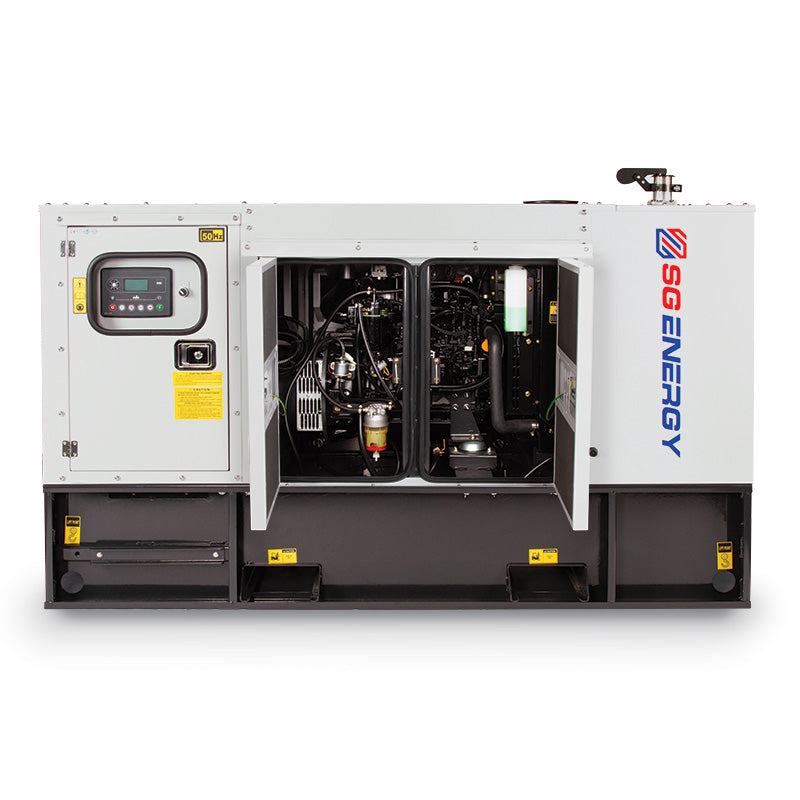

Engine & Alternator

Engine

Model: Yanmar 3TNV88A-GGE
Water-cooled, reliable diesel design
Strong performance across extended runtime

Alternator

Model: Dingol 164C
Brushless alternator with AVR
Stable single-phase output

Control System & Electrical Protection

Fitted with a Deep Sea Electronics DSE4520 controller, this unit supports automatic start/stop during low solar generation or battery depletion. The controller offers load monitoring, safety shutdown protections, and fault alerts for secure, dependable operation.
