What engine powers this generator?

It’s powered by a Yanmar 3TNV88-GGE diesel engine.

Is this suitable for solar battery backup systems?

Yes — automatic start makes it ideal for solar + battery backup needs.

Is this a single phase generator?

Yes, it outputs 240 V single phase power.

How much fuel does it use?

Approximately 4.0 L/hr at full load.

Does this generator include automatic start?

Yes — integrated control system starts the generator automatically when required.

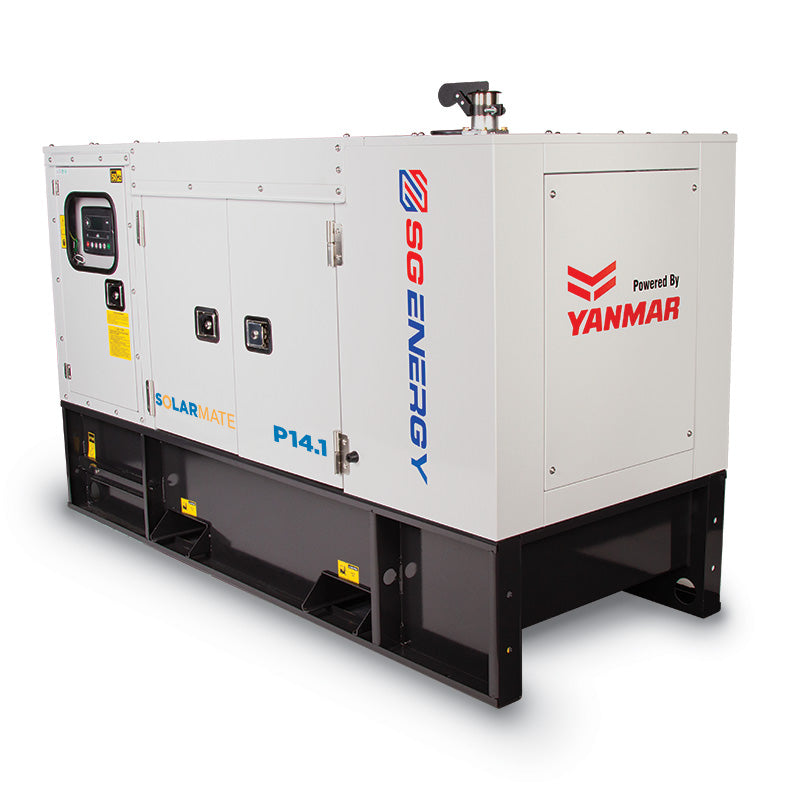

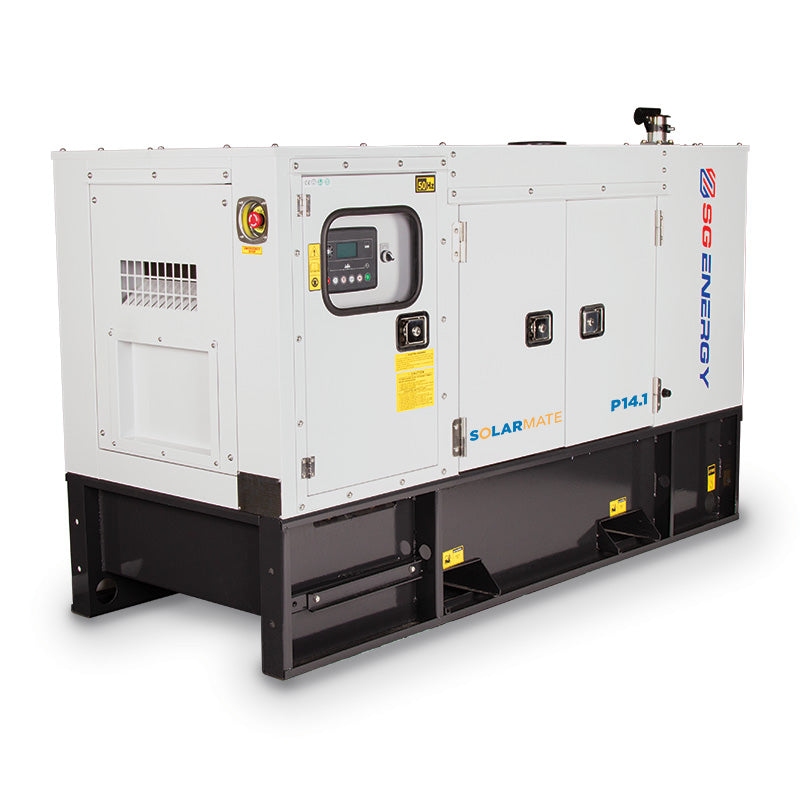

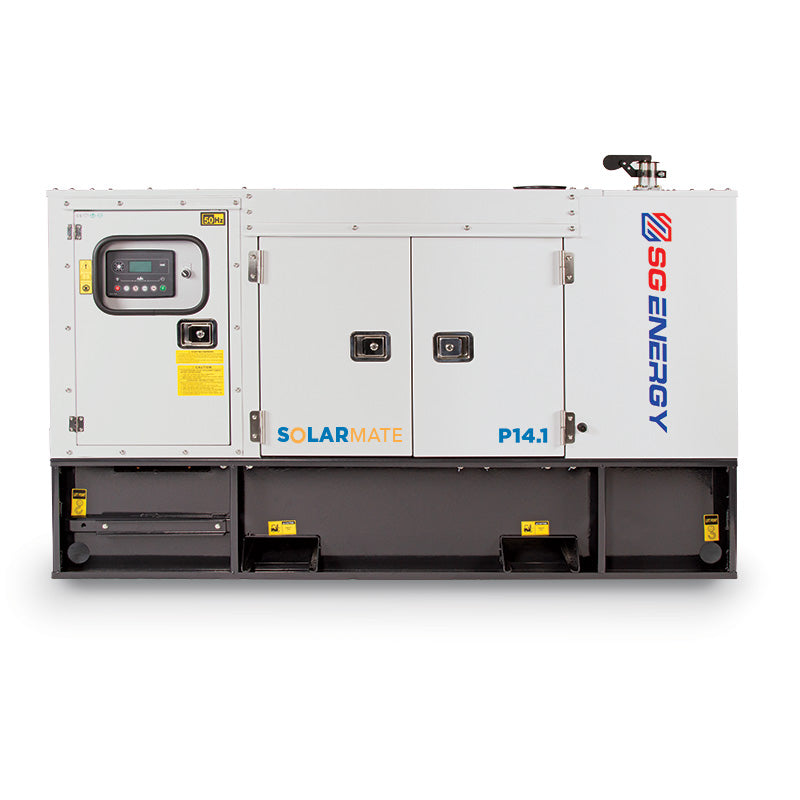

14 kVA Diesel Generator – Yanmar Engine | Solarmate P14.1 (Single Phase)

Name: 14 kVA Diesel Generator – Yanmar Engine | Solarmate P14.1 (Single Phase)
Brand: Southern Generators & Electrical
Availability: OutOfStock

ENQUIRE TO BUY OR RENT →

Single phase diesel generator powered by a reliable Yanmar engine, ideal for solar backup, battery recharge and off-grid power systems.

Product Overview

The Solarmate P14.1 is a powerful, single-phase diesel generator built around a Yanmar water-cooled engine, delivering reliable standby and prime power for solar and hybrid systems.

Designed to start automatically when solar generation decreases or battery charge drops, the P14.1 provides continuous backup and battery recharge capability — ideal for off-grid homes, rural sites, and light commercial applications that demand dependable backup power.

Quick Product Highlights

Standby (ESP): 14.0 kVA
Prime (PRP): 12.7 kVA
Yanmar 3TNV88-GGE diesel engine
Dingol 164C brushless alternator (AVR)
Deep Sea Electronics DSE4520 controller
Automatic start for solar/battery systems
100 L fully bunded integrated fuel tank
Approx. 4.0 L/hr fuel usage @ 100% load
Sound-attenuated canopy (75 dB @ 1 m)
Australia-wide delivery available

Specifications

Prime Power (PRP)	12.5 kVA
Standby Power (ESP)	13.75 kVA
Phase	Single Phase
Voltage	240 V
Frequency	50 Hz
Power Factor	0.8
Engine	YANMAR 3TNV88-GGHWC
Alternator	Dingol 184ES
Controller	Deep Sea Electronic DSE 6120
Fuel Tank	100 L
Canopy	Galvanised Steel Canopy with Powder Coated Paint
Outlets	Configurable to client needs

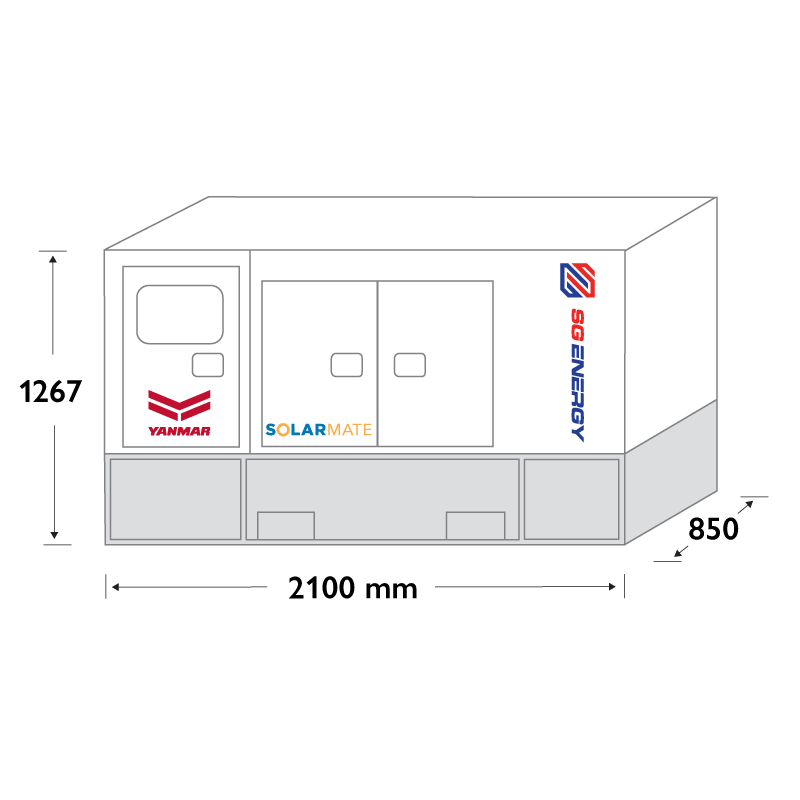

Dimensions (LxWxH)	L2100 x W850 x H1267 mm
Weight (excl. fuel)	815 kg

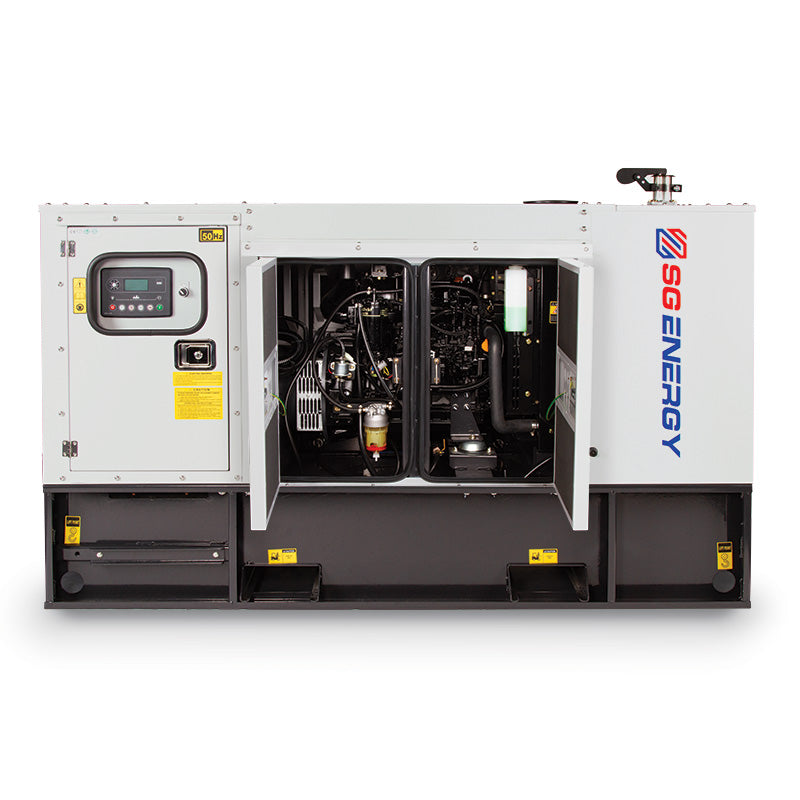

Engine & Alternator

Engine

Model: Yanmar 3TNV88-GGE
Water-cooled diesel with indirect injection
Reliable and efficient under sustained load

Alternator

Model: Dingol 164C
Brushless alternator with AVR for stable output
Engineered for long-term reliability

Control System & Electrical Protection

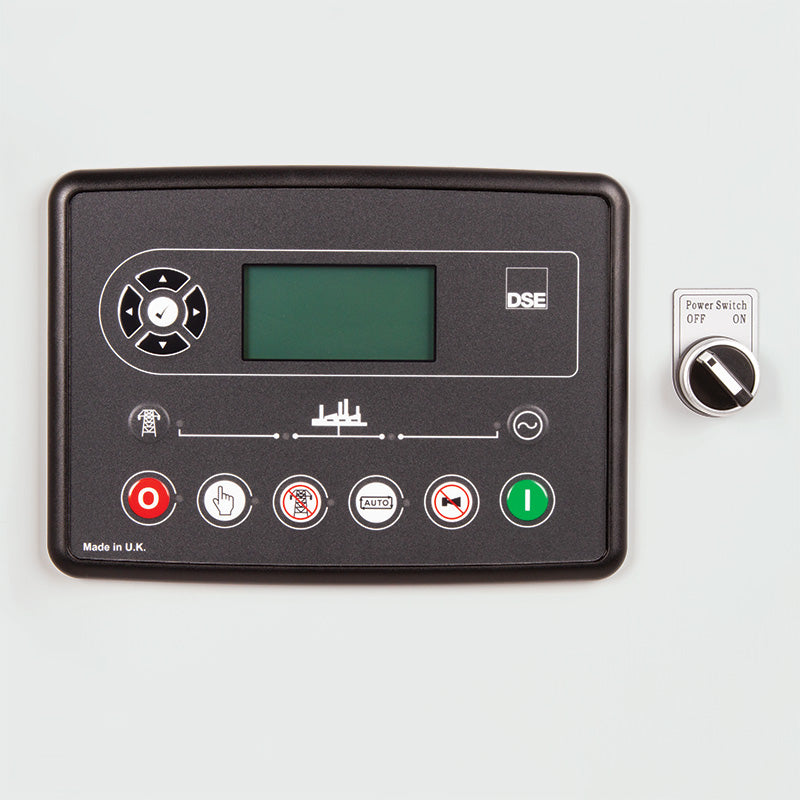

The Solarmate P14.1 uses a Deep Sea Electronics DSE4520 controller, offering automatic start when battery or solar input falls. Includes load monitoring, overload protection, and automatic safety shutdowns for secure, dependable operation.
