What engine powers this generator?

It’s powered by a Yanmar 3TNV88A-GGE diesel engine.

Is this suitable for solar backup?

Yes- it features automatic start for solar and battery backup systems.

How much fuel does it use?

Approximately 5.3 L/hr at full load.

Do you deliver Australia-wide?

Yes. Delivery is available throughout Australia, POA.

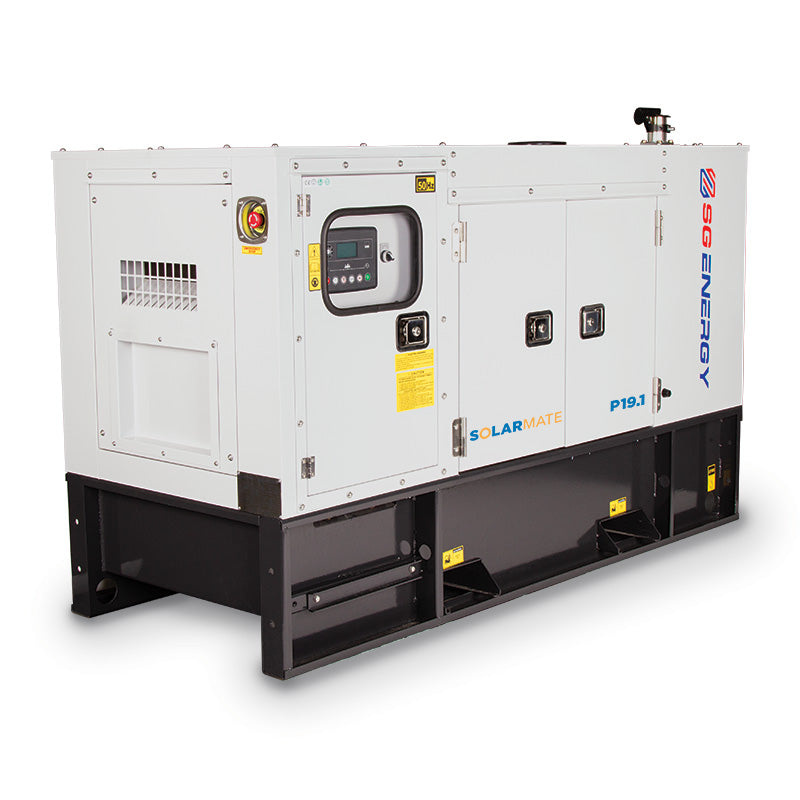

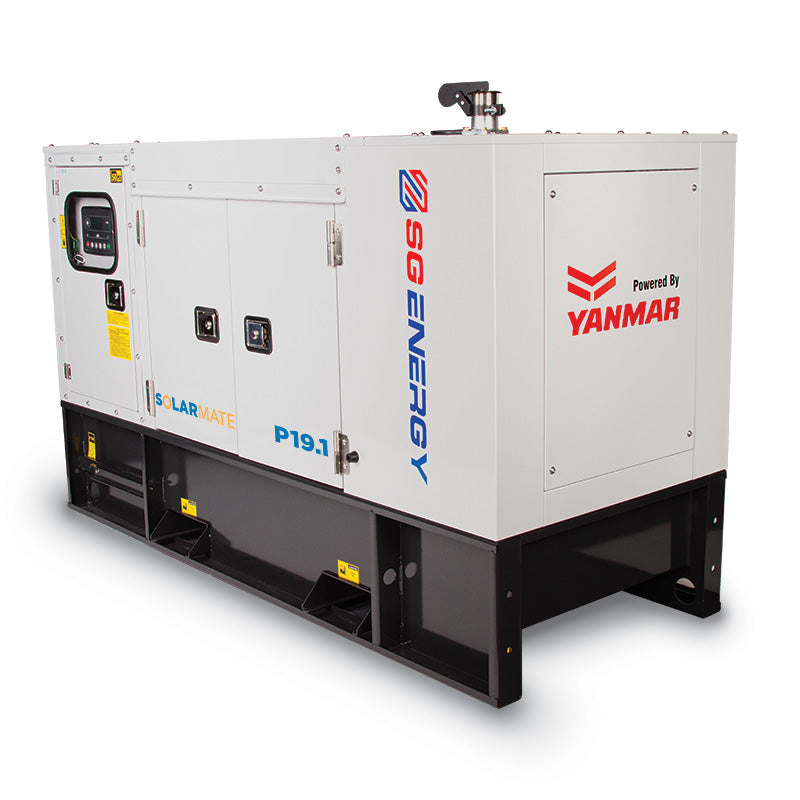

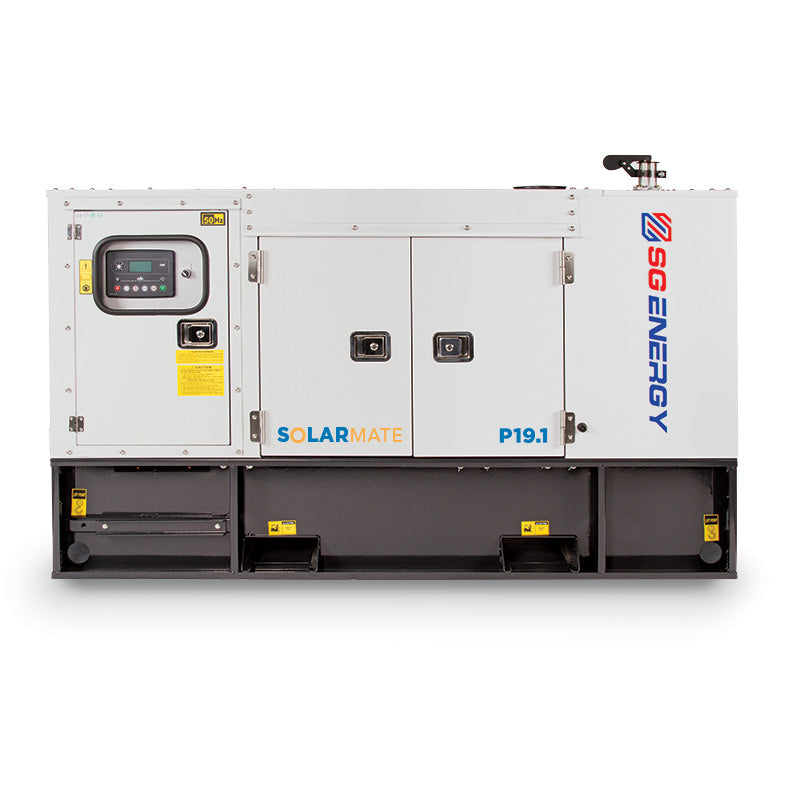

19 kVA Diesel Generator – Yanmar Engine | Solarmate P19.1 (Single Phase)

Name: 19 kVA Diesel Generator – Yanmar Engine | Solarmate P19.1 (Single Phase)
Brand: Southern Generators & Electrical
Availability: OutOfStock

ENQUIRE TO BUY OR RENT →

Single phase diesel generator powered by a reliable Yanmar engine, ideal for solar battery backup, off-grid power systems, and standby applications.

Product Overview

The Solarmate P19.1 is a robust single-phase diesel generator built around a reliable Yanmar water-cooled engine, delivering dependable standby and prime power for solar and hybrid energy systems.

Designed to start automatically when solar generation is insufficient or battery charge is low, this generator supplies uninterrupted backup power. It’s a strong fit for off-grid homes, rural properties, and light commercial applications where consistent, high-quality power is needed.

Quick Product Highlights

Standby (ESP): 19.0 kVA
Prime (PRP): 17.3 kVA
Yanmar 3TNV88A-GGE diesel engine
Dingol 164C brushless alternator (AVR)
Deep Sea Electronics DSE4520 controller
Automatic start for solar/battery backup
100 L fully bunded integrated fuel tank
Approx. 5.3 L/hr fuel usage @ 100% load
Sound-attenuated canopy (~75 dB @ 1 m)
Australia-wide delivery available

Specifications

Prime Power (PRP)	16kVA
Standby Power (ESP)	19kVA
Phase	Single Phase
Voltage	240 V
Frequency	50Hz
Power Factor	0.8
Engine	YANMAR 3TNV88-GGE
Alternator	Dingol 164E
Controller	Deep Sea Electronic DSE 6120
Fuel Tank	150L
Canopy	Galvanised Steel Canopy with Powder Coated Paint
Outlets	Configurable to client needs

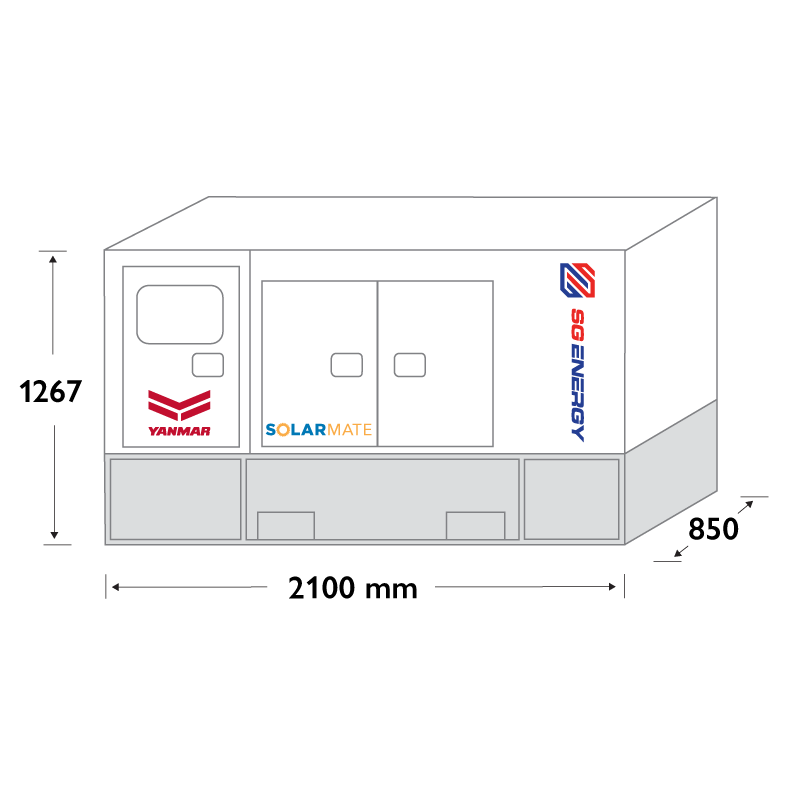

Dimensions (LxWxH)	L2100 x W850 x H1267 mm
Weight (excl. fuel)	830kg

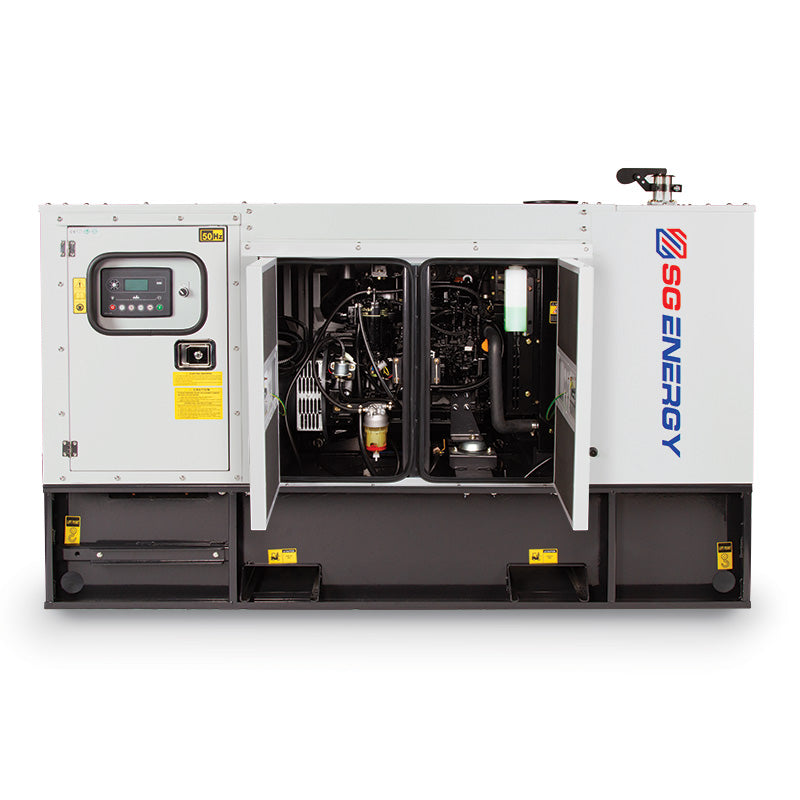

Engine & Alternator

Engine

Model: Yanmar 3TNV88A-GGE
Water-cooled diesel with indirect injection
Designed for long runtime and fuel efficiency

Alternator

Model: Dingol 164C
Brushless alternator with AVR for stable voltage output

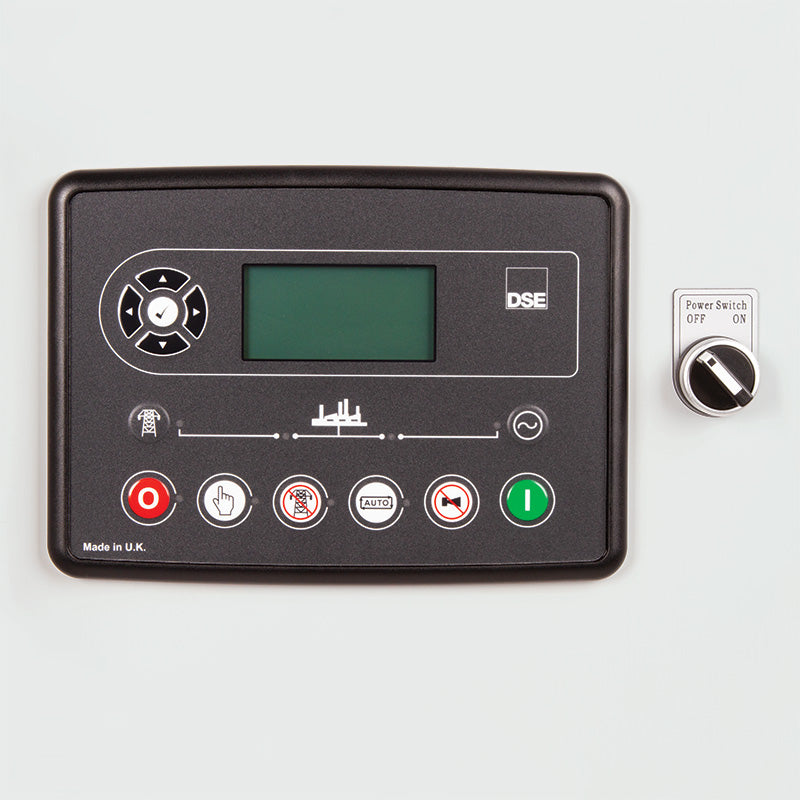

Control System & Electrical Protection

Equipped with a Deep Sea Electronics DSE4520 controller, this generator supports automatic start/stop based on low solar or battery conditions. It offers load monitoring, overload protection, safety shutdowns, and easy remote management.
