Is this generator suitable for rural and commercial use?

Yes. With a single-phase output and robust build, it’s ideal for commercial sites, rural properties, and backup power.

Does it start automatically during a mains outage?

Yes, the Deep Sea controller supports automatic start and transfer.

What is the noise level of this generator?

Refer to the spec sheet for exact noise levels based on load and configuration.

Do you deliver Australia-wide?

Yes. Australia-wide delivery is available.

Is installation included?

Installation is optional and quoted separately.

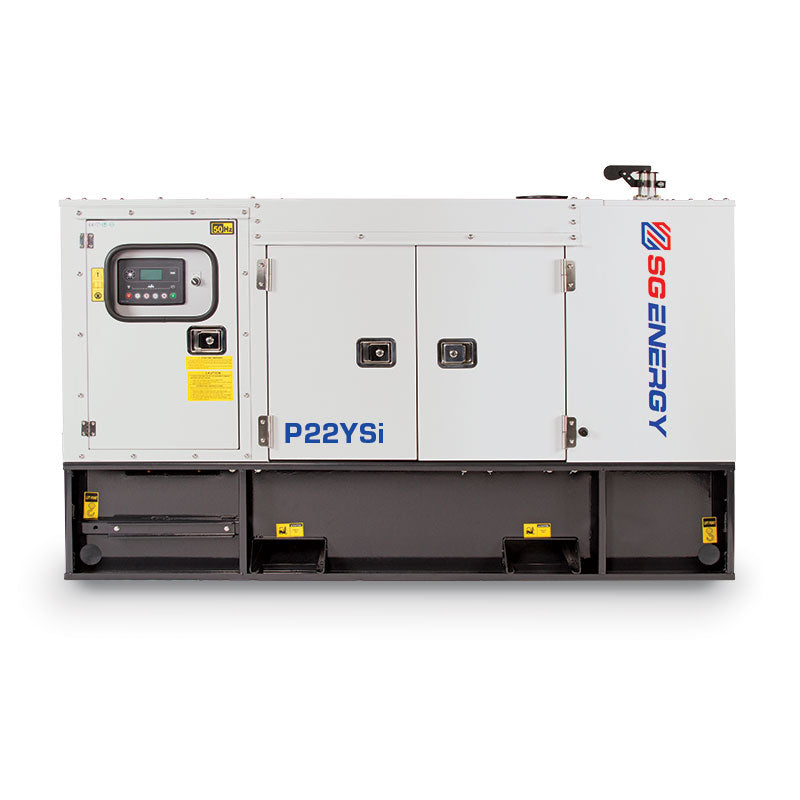

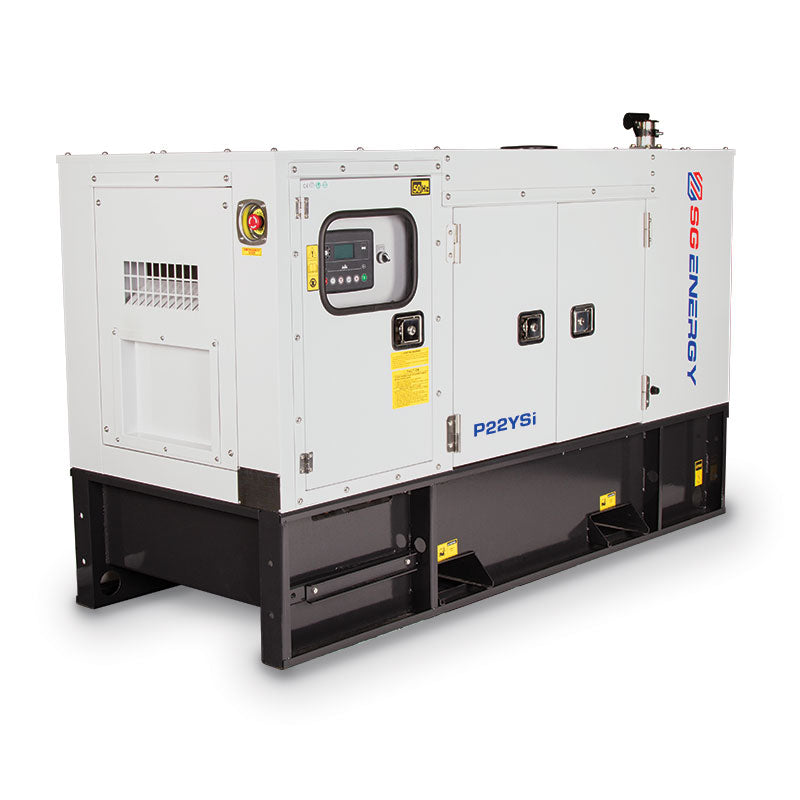

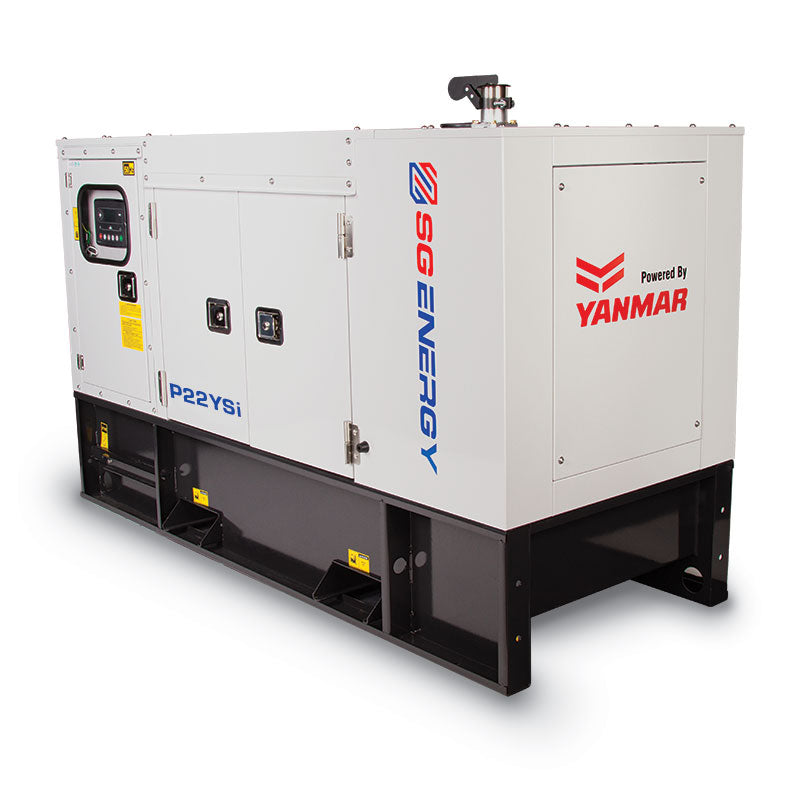

22 kVA Diesel Generator – Yanmar P22YSi (Single Phase)

Name: 22 kVA Diesel Generator – Yanmar P22YSi (Single Phase)
Brand: Southern Generators & Electrical
Availability: OutOfStock

ENQUIRE TO BUY OR RENT →

Compact, durable diesel generator for commercial, rural, and backup power applications - engineered for reliability with Yanmar quality.

Product Overview

The Yanmar P22YSi is a robust and reliable 22 kVA diesel generator designed for single-phase power requirements. Built with a Yanmar diesel engine and industrial-grade alternator with automatic start control, it’s suitable for a range of commercial, rural, and backup power applications across Australia.

Quick Product Highlights

Prime (PRP): 20 kVA | Standby (ESP): 22 kVA
Yanmar diesel engine
Single phase, 240 V output
Mecc Alte alternator
Deep Sea controller with automatic start
Galvanised steel canopy
Australia-wide delivery available

Specifications

Prime Power (PRP)	20kVA
Standby Power (ESP)	22kVA
Phase	Single Phase
Voltage	240 V
Frequency	50Hz
Power Factor	0.8
Engine	Yanmar Diesel
Alternator	Mecc Alte ECP28 M4C
Controller	Deep Sea Electronics DSE 6120
Fuel Tank	150L
Canopy	Galvanised Steel Canopy with Powder Coated Paint
Outlets	Configurable to requirements

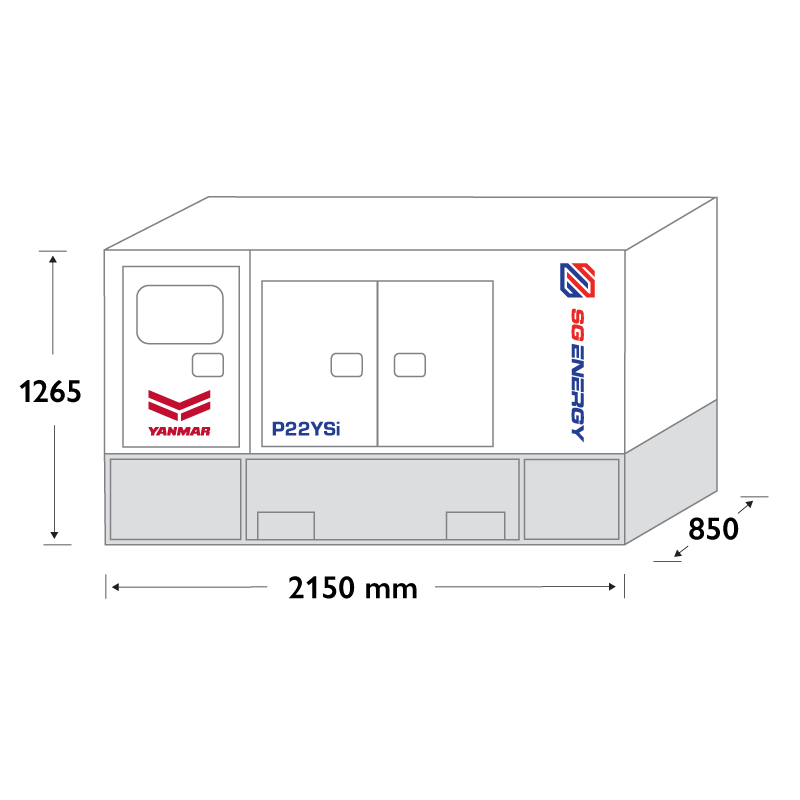

Dimensions (LxWxH)	L2150 x W850 x H1265 mm
Weight (excl. fuel)	1265kg

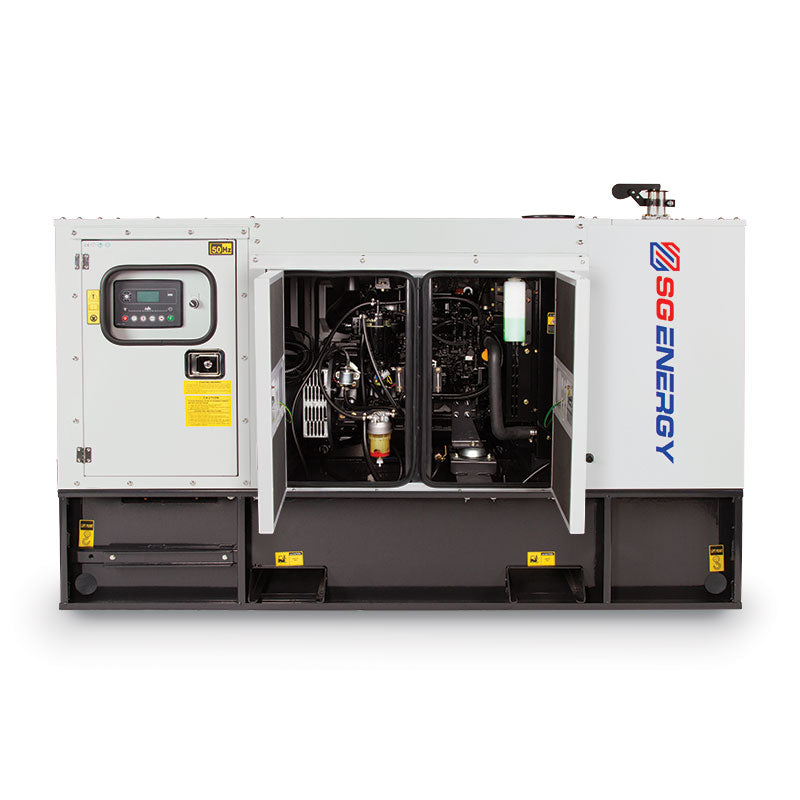

Engine & Alternator

Engine

Genuine Yanmar diesel engine
Known for durability and smooth operation
Designed for sustained load applications

Alternator

Industrial-grade Mecc Alte alternator
Consistent single-phase voltage output
Durable design for extended operation

Control System & Electrical Protection

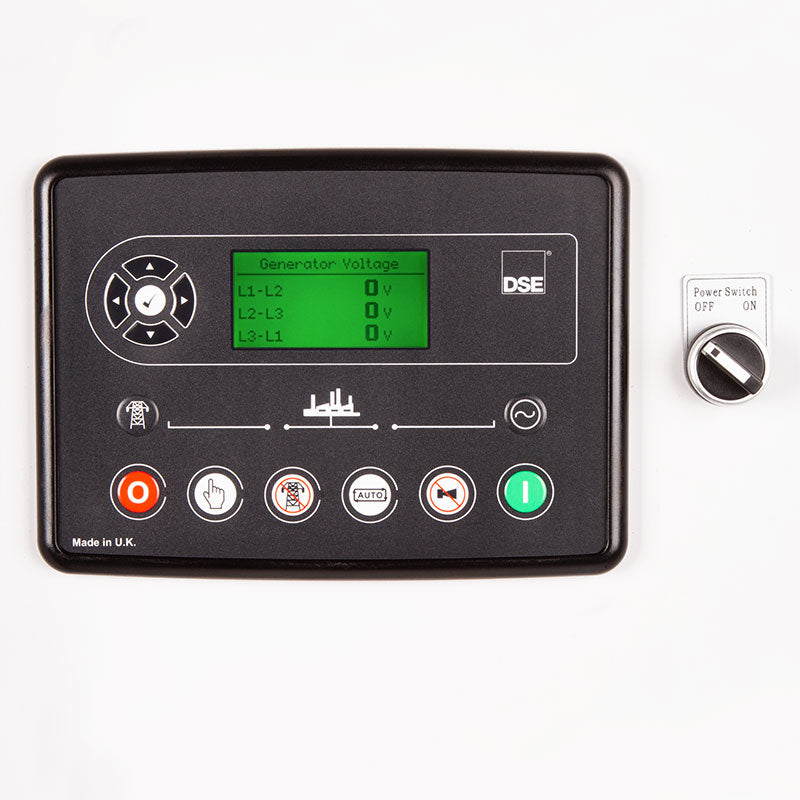

Equipped with a Deep Sea Electronics controller that enables automatic start during mains failure, protecting essential equipment and reducing downtime.
